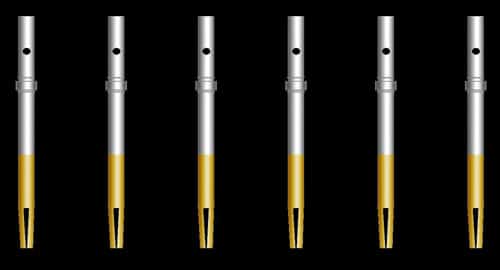

As a full service provider of precious metal plating services, Electro-Spec, Inc. provides various specialized plating processes to meet the stringent demands of their customers. Exemplifying these capabilities is a plating process that selectively plates gold onto loose piece pins and contacts.

This advanced precision plating process utilizes a controlled depth plating system and special tooling, which gives Electro-Spec the ability to apply a gold plate to the end of a pin or contact with precision control. It can impart as much as 5 microns (.000200″) gold while leaving the rest of the pin nickel-plated or with as little as .125 microns (.000005″) of Gold. Because of the extreme control that this selective gold plating allows, as much as 70% savings in the material can be gleaned.

In addition, this highly engineered system also delivers precise consistency and repeatability; by using precision fluid level monitoring, it can produce controlled depth to within .022″. The plating system utilizes flexible tooling and transport belt which allows for a wide range of controlled depth plated part configurations. By using specific inserts for each part, Electro-Spec can plate parts up to 1.75″ in length and .25″ in diameter.

Download PDF about Selective Gold Plating

Learn More About Our Selective Gold Plating

There are a number of unique properties to working with gold that make gold plating services ideally suited for a number of different processes.

No matter what type of environment or climate, gold often offers superior protection against corrosion when compared to different precious metals. This will help reduce the effects of wear over time and prolong the lifespan of the substrate.

Gold also provides tremendous protection against intense heat and it is an excellent conductor of electricity.

Of course the inherent beauty of gold will also instantly enhance the aesthetic appeal of the plated product. While not necessarily important in relates to industrial applications, from a marketing perspective this can certainly be a key consideration.

If you have the option but are unsure what to choose, gold is often the best solution.

If you want the best possible service, you need a company like us that not only has the latest technological advances but also uses precision fluid level monitoring to offer repeatability and precise consistency.
